Home > Products > Conductor > Aluminum Alloy Insulated Conductor Grip Come Along Clamp

Aluminum Alloy Insulated Conductor Grip Come Along Clamp

  • Aluminum Alloy Insulated Conductor Grip Come Along Clamp
  • Aluminum Alloy Insulated Conductor Grip Come Along Clamp
  • Aluminum Alloy Insulated Conductor Grip Come Along Clamp
  • Aluminum Alloy Insulated Conductor Grip Come Along Clamp

Aluminum Alloy Insulated Conductor Grip Come Along Clamp

    Unit Price: 20~105 USD
    Min. Order: 1 Piece/Pieces
    Packaging: Carton or wooden case or as requested for 10kN Aluminum Alloy Insulated Conductor Grip Come Along Clamp
    Productivity: 1000pcs per month
    Brand: Haoxin
    Transportation: Ocean,Land,Air,Express
    Place of Origin: China
    Supply Ability: 1000 pcs per month
    Certificate: ISO 9001/ISO 14001
    HS Code: 8205590000
    Port: Shanghai port,Ningbo port

Basic Info

Model No.: SKJL-1

Product Description

The Aluminum Alloy insulated Conductor grip is mainly used to clamp wires with insulating layer outside. Insulated come along clamp is suitable for holding conductor with insulating sheath. Insulated wire grip is made of high strength aluminum alloy forging die with light weight and high strength. It will not damage the conductor surface when holding it.


Description:
The come along clamp is used to hold the unfolded wire or ground wire and optical cable after the completion of stringing operation or tension operation, so as to complete relevant operation on the line. According to the use, conductor come along clamp, ground wire come along clamp, optical cable come along clamp and wire rope come along clamp are classified.

Technical principle:
After the come along clamp holds the ground wire, the tension is applied to the pull ring, and the sliding shaft of the pull ring slides in the body wire slot, and drives the connecting plate, and the movable jaw seat rotates accordingly. Because the other end of the movable jaw seat is hinged firmly with the jaw, when rotating, the movable jaw is forced to press down along the pin shaft, and the cable is pressed on the fixed jaw seat. The greater the tension on the pull ring, the greater the downward pressure on the movable jaw, so as to ensure that the ground wire is tightly clamped by the movable jaw and the fixed jaw.

Structure composition:

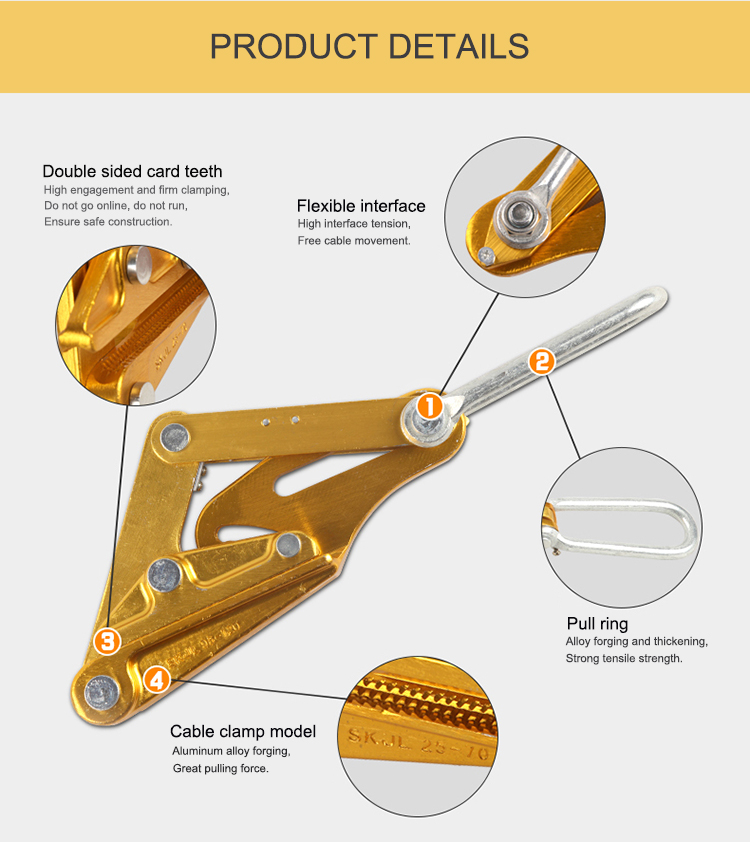

The come along clamp is mainly composed of movable jaw base, connecting plate, pull ring, fixed jaw (lower jaw), movable jaw (upper jaw), body and other components. Strengthening the hook can improve the overall stress condition of the come along clamp and make it more safe and reliable.


Product Parameters:

Aluminum Alloy Insulated Come Along Clamp Insulated Wire Grip

Model Rated load Applicable insulated conductor Applicable conductor diameter Weight
SKJL-1 10kN 25-70mm² 10-14mm 1.55kg
SKJL-2 15kN 95-120mm² 14-20mm 2.55kg
SKJL-3 25kN 150-240mm² 20-25mm 3.85kg
SKJL-4 35kN 300-400mm² 25-29mm 5.4kg
Contact me and "SEND" inquiry if you are interested in it.Aluminum Alloy Insulated Conductor Grip Come Along ClampAluminum Alloy Insulated Conductor Grip Come Along Clamp
