Home > Products > ABC Cable > Best Price XLPE Insulation 4x16 ABC Cable

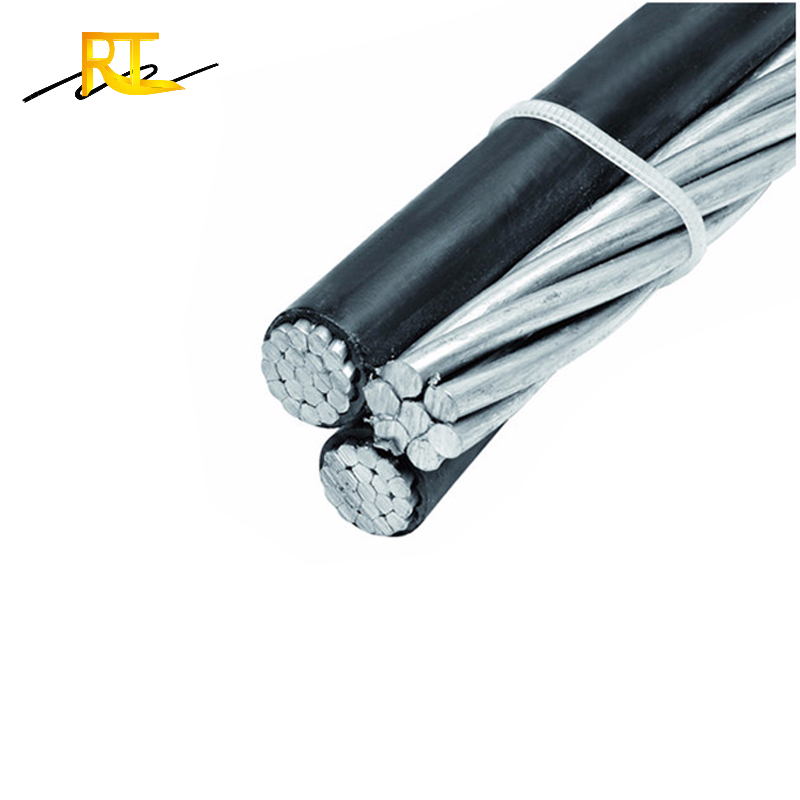

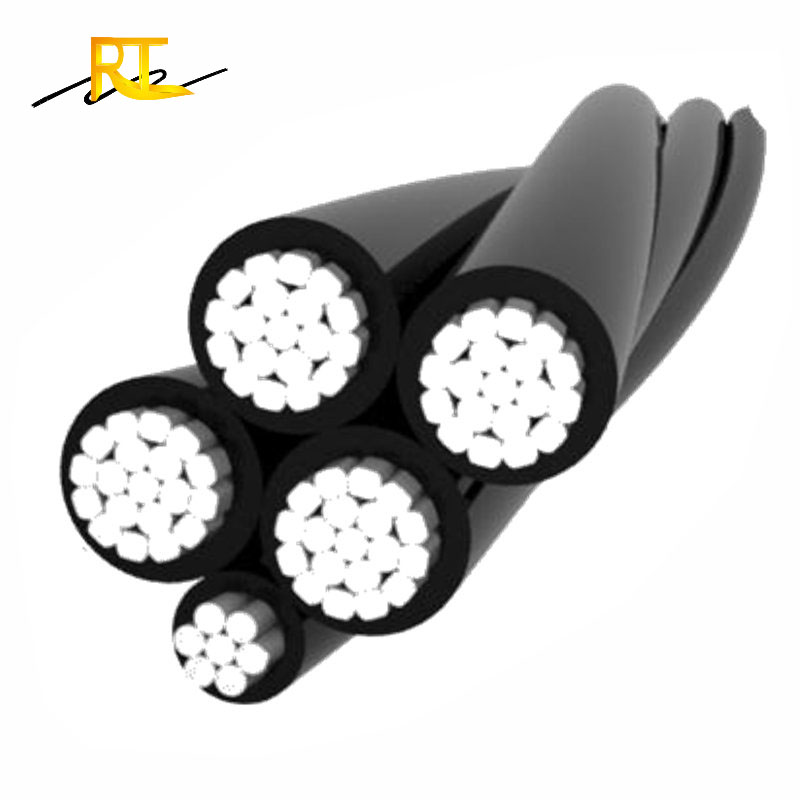

Best Price XLPE Insulation 4x16 ABC Cable

  • Best Price XLPE Insulation 4x16 ABC Cable
  • Best Price XLPE Insulation 4x16 ABC Cable
  • Best Price XLPE Insulation 4x16 ABC Cable
  • Best Price XLPE Insulation 4x16 ABC Cable

Best Price XLPE Insulation 4x16 ABC Cable

    Min. Order: 100 Meter
    Packaging: 1.Packing Lengths:100m/roll,200m/roll,300m/roll,100yard/roll accroding to customes requirement. 2.Inner Packing:carton box,pull out box,pallet avilable 3.Outer Packing:carton box,pull out box,pallet avilable
    Transportation: Ocean,Land,Air,Express
    Supply Ability: 1000000 Meter/Meters per Month
    Port: Tianjin,Qingdao,Shanghai

Product Description

Best Price XLPE Insulation 4x16 ABC Cable

Rated Voltage: 0.6/1KV
Test Voltage: 4KV
Operating Temperature: -40°C~ +90°C
Maximum Short-circuit Temperature: 250°C
Minimum Bending Radius: 18×OD

Detailed Images
Number of Cores xNominal Cross Section
Overall Diameter
Weight
Maximum Conductor Resistance
No.×mm2
mm
Kg/Km
Ω/Km
1x16
8,0
74
1,910
1x25
9,0
106
1,200
1x35
10,5
138
0,868
1x50
11,8
182
0,641
1x70
13,0
252
0,443
1x95
15,4
333
0,320
1x120
17,0
408
0,253
1x150
19,0
502
0,206
1x185
21,0
611
0,164
1x240
24,0
801
0,125
2x16
15,6
147
1,910
2x25
18,0
208
1,200
2x35
20,0
277
0,868
2x50
23,5
361
0,641
2x70
25,4
505
0,443
2x95
30,3
666
0,320
2x150
38,0
1004
0,206
4x16 RM
18,8
286
1,910
4x25 RM
21,2
430
1,200
4x35 RM
24,1
553
0,868
4x50
27,8
746
0,641
4x70
31,8
1009
0,443
4x95
37,8
1332
0,320
4x120
54,4
1632
0,253
Packing & Delivery
